Pneumatic Conveying Components Pipe Clamp Coupling Metal For Material Transportation

Brand Name : YP

Model Number : PP-16

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 3000pcs per month

Delivery Time : 30 working days after get your payment

Packaging Details : plastic bag, box, carton ,pallet, wooden case ,iron pallet or according your requirement

Material : Stainless Steel Or Galvanized Steel

Usage : Coupling

Standard or nonstandard : Standard

Size : Customized Sizes Acceptable

Application : Connection

Color : Blank and Metal

Type : C Type

Function : Fasterner,Clamping

Contact Now

Pneumatic Conveying Components Metal Pipe Clamps Coupling For Material Transportation

description:

The inner gasket makes the seal between the two pipe segments, with interlocking finger structure which make the coupling air/fine product leakage during the conveying; material could be black rubber (or white silicon).Couplings with stainless steel gasket protectors provide positive gasket protection against abrasion or corrosion with no adverse effect on coupling capabilities.

Connector Pipe Saver Pipe Repair Clamp
size(mm)	pipe clamp	Rubber or Silicone	bolts quantity	nut quantity
ø38*100	stainless steel or customer's require	Rubber or Silicone	2	2
ø51*100	stainless steel or customer's require	Rubber or Silicone	3	3
ø38*130	stainless steel or customer's require	Rubber or Silicone	3	3
ø51*130	stainless steel or customer's require	Rubber or Silicone	3	3
ø63*130	stainless steel or customer's require	Rubber or Silicone	3
ø76*150	stainless steel or customer's require	Rubber or Silicone	3	3
ø89*150	stainless steel or customer's require	Rubber or Silicone	3	3
ø102*150	stainless steel or customer's require	Rubber or Silicone	3	3

Feature:

1. Couplings are easy to install.
2. Standard construction is zinc plated steel.
3. Couplings, pipe and tube are also available in stainless steel and aluminum.
4. Gasket materials: black and white rubber, silicone and an extensive range of other materials available.

Tel:+8616631129391

Email:export@ypmachinery.com

Wechat:Amy010086

whatsapp: 86 13739764346

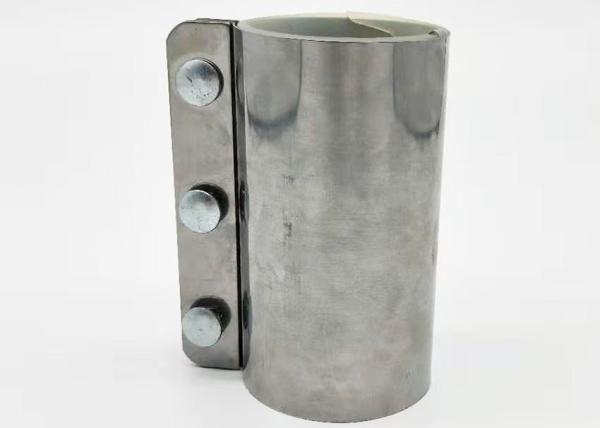

Picture:

Pneumatic Conveying Components Pipe Clamp Coupling Metal For Material Transportation

Application:

Standard pipe connections use 2-3-bolt compression couplings with an internal gasket and metal grounding strip.Connecting coupling and particle conveying of central material conveying pipeline.
